RM-65
Super Lightweight 6-Axis Collaborative Robot
- The very cost effective 6 axis lightweight collaborative robot .
- Good for robotics education and lightweight industrial applications .
- High Performance
- Modular design
- High Precision
- Easy Maintenance
Light Weight and compact size. The maximum width of the manipulator is 15mm, which reduces installation requirements
High load deadweight ratio. super lightweight body, weight 7.2kg,load 5kg
Lower power consumption. Suitable for 24V DC Power Supply of mobile power supply
Easy to learn and use

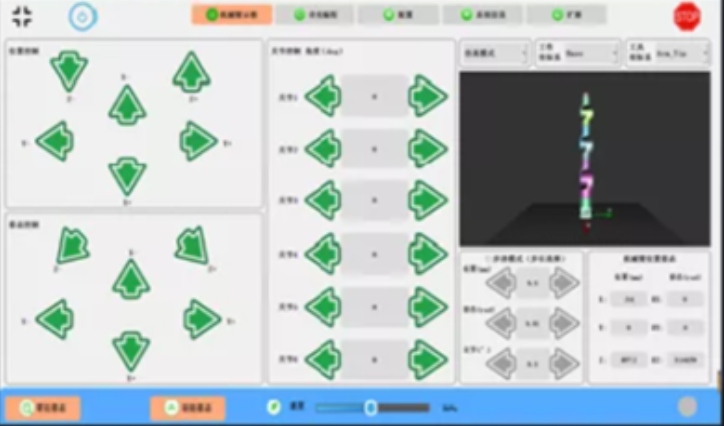

- Graphical Programming: Intuitive interface
Highly Extensible
- Open API library that supports C/C++ programming languages and can be used on Windows/Linux
Easy to control:
- Control over wire or wireless connections
Hand holding drag teaching:
- Fully replay the drag track
Specification | |
|---|---|
Joints | 6 |
Payload | 5kg |
Weight | 7.2kg |
Repetitive positioning accuracy | +0.05mm |
Working radius | 610mm |
Power voltage | DC 24V |
Material | Aluminum alloy |
IP Protection | IP54 |
Controller | Built-in |
Communication | WiFi; Ethernet; Bluetooth; USB; RS485 |
Joints speed | J1-J2 180°/s ; J3-J6 225°/s |
Joints working range | Joint 1 ±180°;
Joint 2 ±130°;
Joint 3 ±135°;
Joint 4 ±180°;
Joint 5 ±128°;
Joint 6 ±360° |
